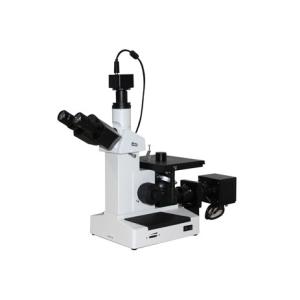

Trinocular Inverted Metallurgical Microscope
M13109 Trinocular Inverted Metallurgical Microscope. M13109 is an inverted metallurgical microscope mainly used for metal identification and analysis of the internal structure of organizations. .
Features:
- It is the important device which can be used to study the metallographic of metal and it is also the key instrument to verify the product quality in industrial application.
- This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
| Item | Description / Value |
| View tube: | Trinocular, Hinge trinocular, 30° Tilt, Adjustable range: 55-75mm |
| Eyepiece: | WF10 x (Φ16mm) |
| Objective: | Flat fielding achromatic objective lens 10X, 25X, 40X, 100X (oil) |
| Nosepiece: | 4-position |
| Stage: | 150 x 200mm Moving range: vertical 15mm, horizontal 15mm |
| Photographic device (optional): | Image adapting lens, high resolution color CCD camera static and dynamic capturing card, image analysis software, EPSON color jet printer Digital camera, specific adapting lens |
